Output Routing

Orbit Lite lets you route audio channels to your output device. Access the output configuration from the footer.

Orbit Lite output routing configuration

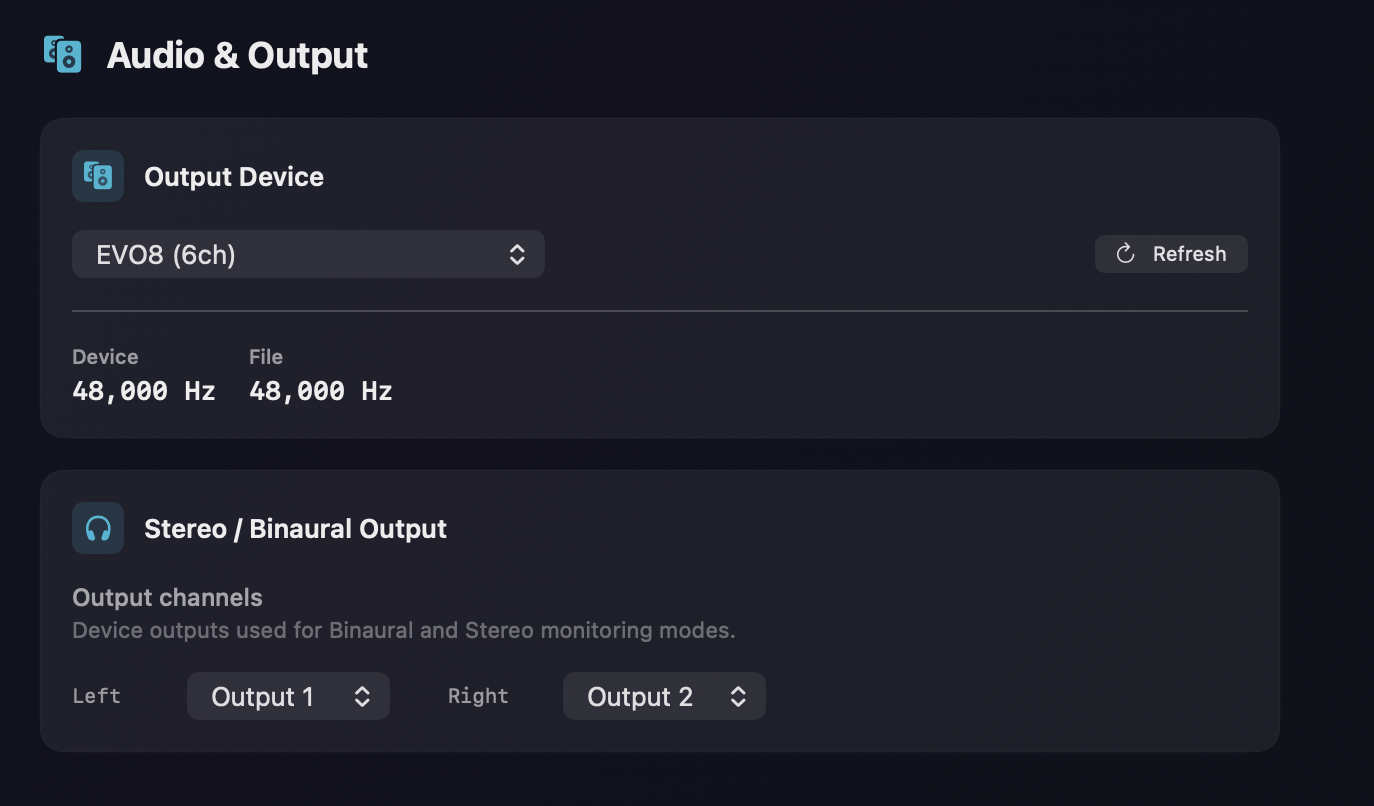

Stereo output

When using binaural, Apple Spatial Audio, or stereo monitoring, map the left and right channels to your device outputs.

7.1.4 output

When using 7.1.4 monitoring, map all 12 channels to your speaker array:

L / R — Front left and right
C — Centre
LFE — Low-frequency effects
Ls / Rs — Side surrounds
Lrs / Rrs — Rear surrounds
Ltf / Rtf — Top front left and right
Ltr / Rtr — Top rear left and right

Orbit Lite will show a conflict indicator if two channels are assigned to the same device output.

Refreshing devices

If you connect a new audio device (like an interface or AirPods), use Refresh Devices to pick it up.
